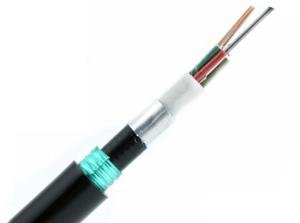

72Cores Metallic Strength Member Armored Outdoor Fiber Optic Cable GYTZA53
DESCRIPTION
Loose tube design, metallic central strength member, SZ stranded core filled with gel, longitudinal wrapped Aluminum Tape, inner PE sheath, steel tape armored, outer PE sheath
FEATURES
Low transmission attenuation and dispersion.
Reasonable design, precise control of excess length of fibers in the loose tube and optimum cabling process provides the cable excellent mechanical and environmental properties.
The SZ-stranded, loose tube design isolated fibers from installation and environmental rigors.
The water blocking gel filled core design provides the cable excellent water- proof performance and moisture-resistance, with smaller size.
APPLICATIONS
Long distance & interoffice communication
PERFORMANCE
| Fiber core | Nominal Diameter (mm) | Nominal Weight
(kg/km) | Max Fibers
per Tube | Max No. of
(Tubes+fillers) | Allowable Tensile
Load (N) | Allowable Crush
Resistance
(N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 2~30 | 13.2 | 162 | 6 | 5 | 3000 | 1000 | 3000 | 1000 |
| 32~48 | 13.8 | 175 | 8 | 6 | 3000 | 1000 | 3000 | 1000 |
| 50~72 | 14.6 | 205 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
| 74~96 | 16 | 230 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 98~144 | 17.6 | 285 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
| >144 | Available upon customer's request |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
