48 Cores Armor AL Anti-Rodent Outdoor Fiber Optic Cable GYTA53 Stranded Cable
DESCRIPTION

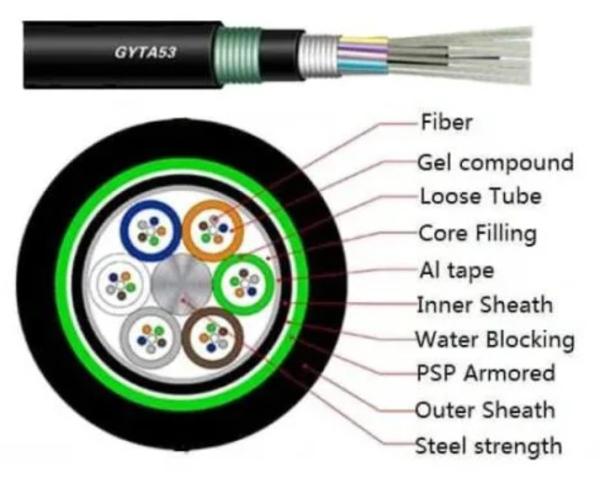

Fibers, 200/250 μm, placed in loose tubes made of high modulus plastic. Located in the center of the core as a metal reinforcement. The tube (and filler) is twisted around the strength member into a compact circular cable core. The cable core is filled with filler compound to prevent water ingress, and a thin inner PE jacket is applied on it, after armouring the aluminum tape to form a double PE jacket.
FEATURES
Excellent mechanical and environmental performance
Good cursh resistance
Gel-filled Loose tube protect the fiber well
Good waterproof performance
APPLICATIONS
Direct burial, ground burial, pipe piercing
PERFORMANCE
| Type | Max.Attenuation | Tensile test | Crush test | Min.Bending radius |
| 1310nm | 1550nm | Short term | Long term | Short term | Long term |
| GYTA53-48 | 0.36dB/km | 0.22dB/km | 4000N | 2000N | 3000N | 1000N | 25D |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
